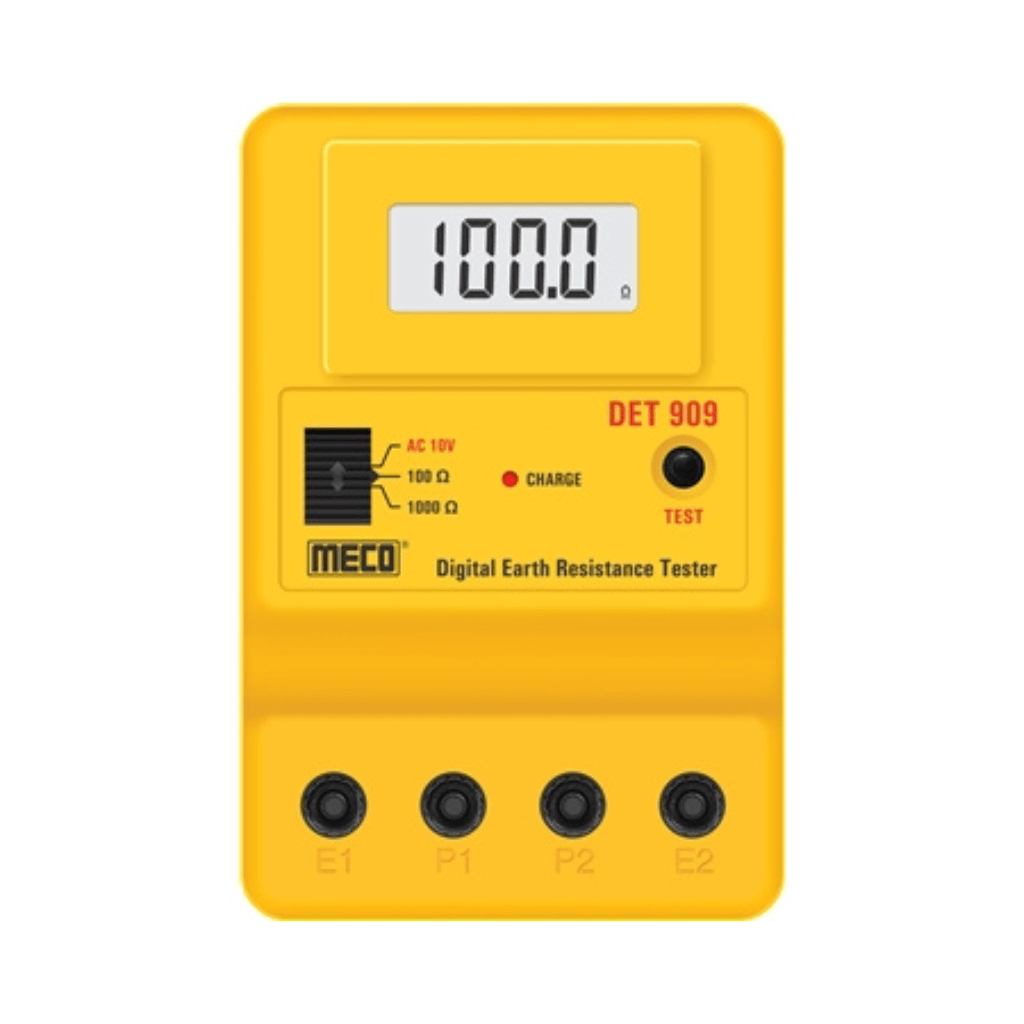

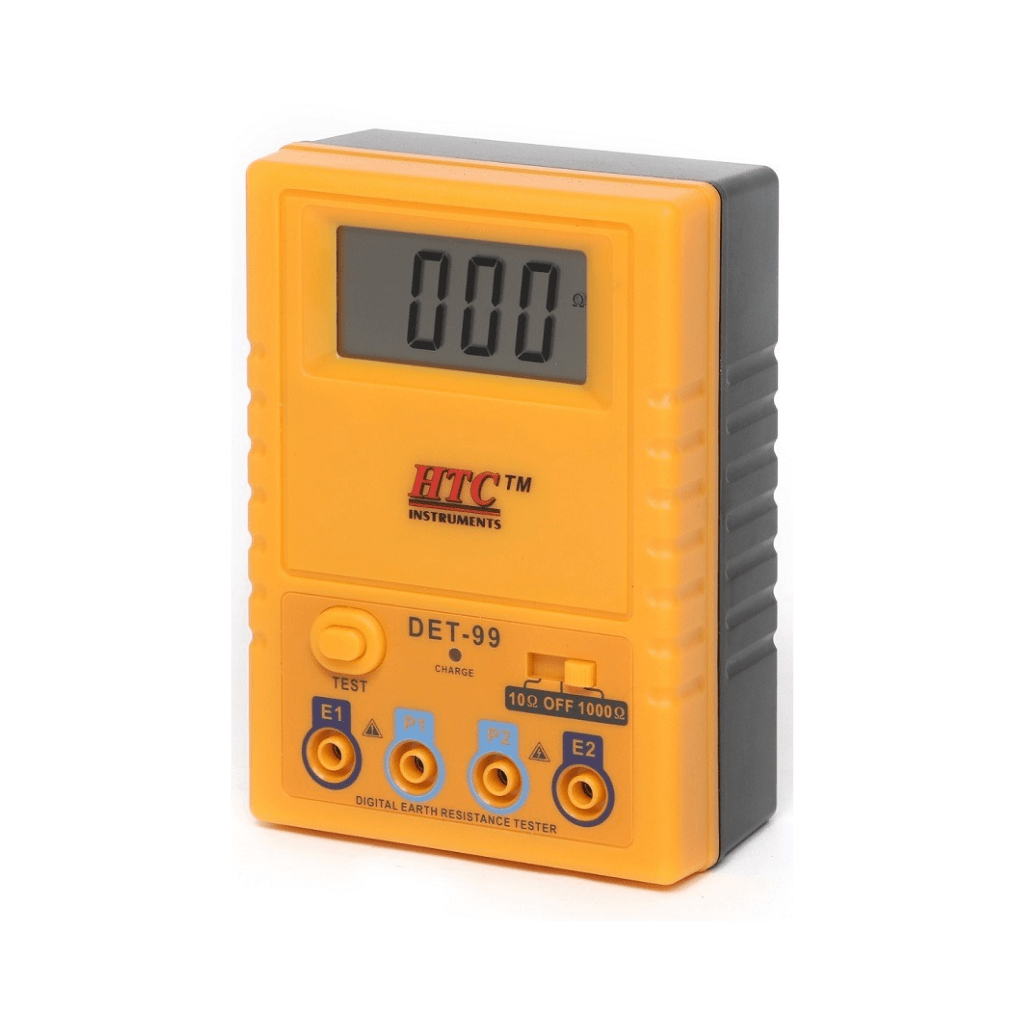

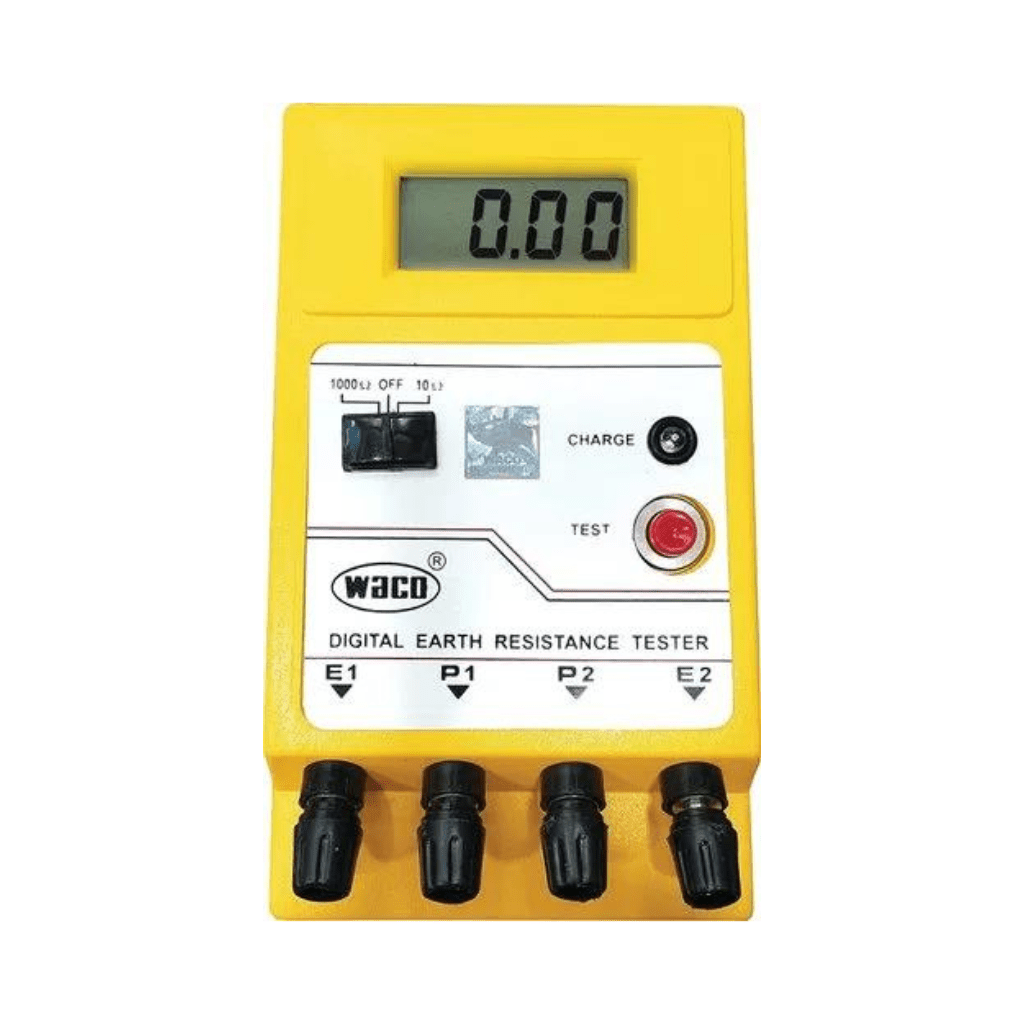

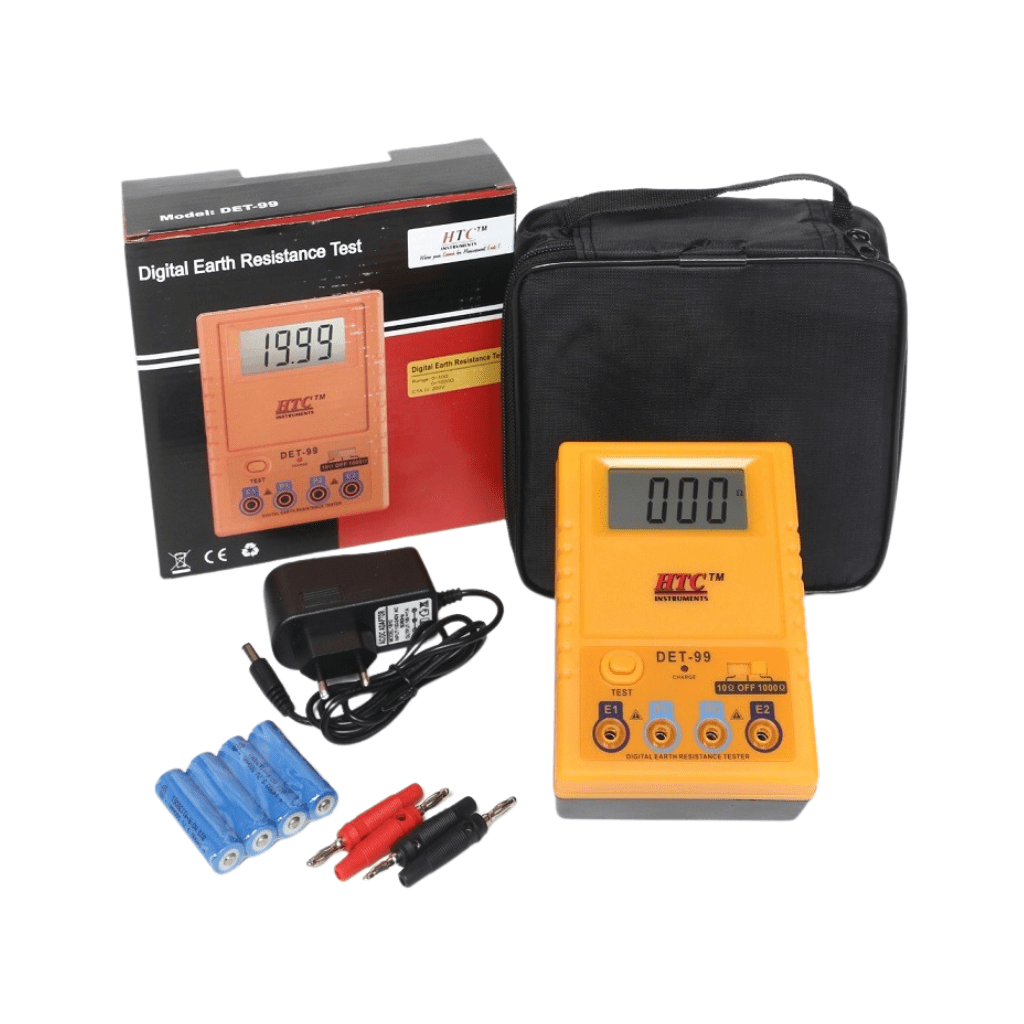

An Earth Tester Meter, also known as a Ground Resistance Tester or Earth Resistance Tester, is an essential tool used in electrical installations to measure the resistance of grounding systems. Proper grounding is crucial for the safety and efficiency of electrical systems, as it helps prevent electric shocks, equipment damage, and fire hazards. Below are the main uses of an Earth Tester Meter:

1. Measuring Earth Ground Resistance:

   • The primary use of an Earth Tester Meter is to measure the resistance between the earth electrode and the ground. Low resistance indicates a good grounding system, essential for safely dissipating fault currents into the earth.

2. Testing Grounding Systems in Electrical Installations:

   • Earth testers are used to ensure that grounding systems in buildings, substations, and industrial facilities are functioning correctly. This helps maintain the safety and reliability of the electrical system.

3. Testing Ground Electrodes:

   • The meter is used to measure the resistance of individual ground electrodes, which are critical components of a grounding system. Proper testing ensures they meet the required standards.

4. Soil Resistivity Testing:

   • Earth Tester Meters are used to measure the resistivity of the soil, which is an important factor in designing grounding systems. Soil resistivity testing helps in determining the suitability of the soil for effective grounding.

5. Testing Lightning Protection Systems:

   • Earth testers are used to verify that lightning protection systems have adequate grounding. Proper grounding is essential to safely dissipate the high energy from lightning strikes.

6. Verifying Compliance with Electrical Standards:

   • Regular testing of grounding systems with an Earth Tester Meter helps ensure compliance with local and international electrical standards (such as IEEE, NEC, IEC). This is important for safety and regulatory requirements.
